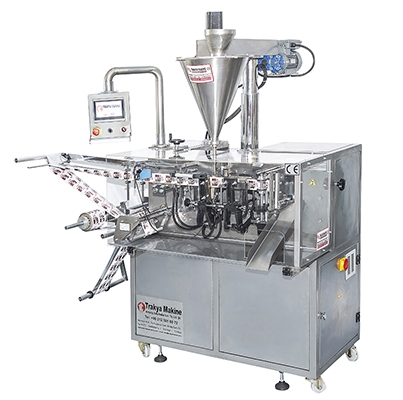

Powder Filling Machine
Specificații
Filling Weight: min 1 gr, max 30 gr
Package Width: min 50 mm, max 120 mm
Package Size: min 50 mm, max 140 mm
Production Capacity per Minute: min 60 pcs / minute, max 70 pcs / minute
Dimensions of the Machine: 85cm * 190cm * 170cm
Weight: 500 Kg
Electricity Requirement: 2,5 Kw - 220 Volt
Products to be Packaged: 5x5 mm - 14x14 mm - 5x12 - 6x8 - 6x14 - 7x10 - 7x14
Dust filling package can be realized for single-use
Powder Filling Machine Auxiliary Equipments
Elevator, Helezon
GENERAL PROPERTIES OF MACHINE
Entirely stainless appearance 304 quality
Control System: PLC controller
Control Panel : Touch Screen
Operation by Photocell –without Photocell
Package motor is equipped with STEP motor
Weight adjustment automatically adjusted over the screen
Easy transition between products. Special rail system rapidly and easily adjusted between the sizes in a short time. Liquid filling in desired dimension within the ranges of 5*5, 14*14.
Digital tachometer indicating net capacity of the machine per minute
Silent operation
Advanced smart system having multi-programme
Special programme reducing loss to occur due to printing errors to zero
Software update via internet
Digital thermostat with the sensitivity of (+ -) 2 Cº
Ergonomic design providing easy use
